15
p15p15-topp.15d2

P.15D2

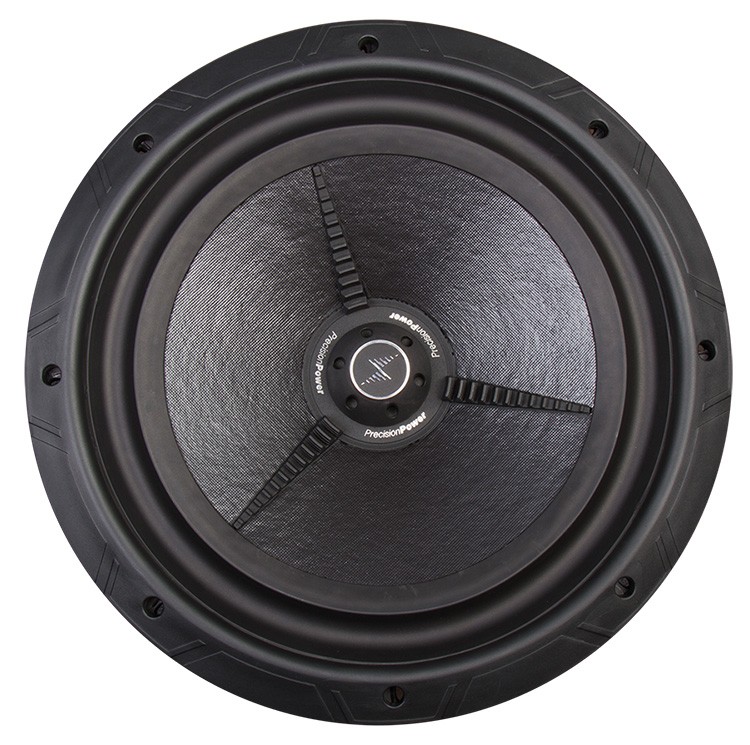

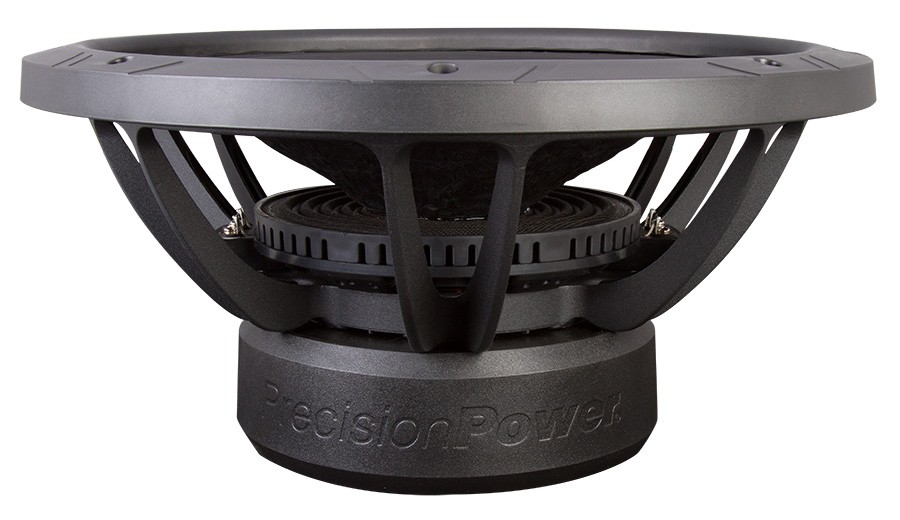

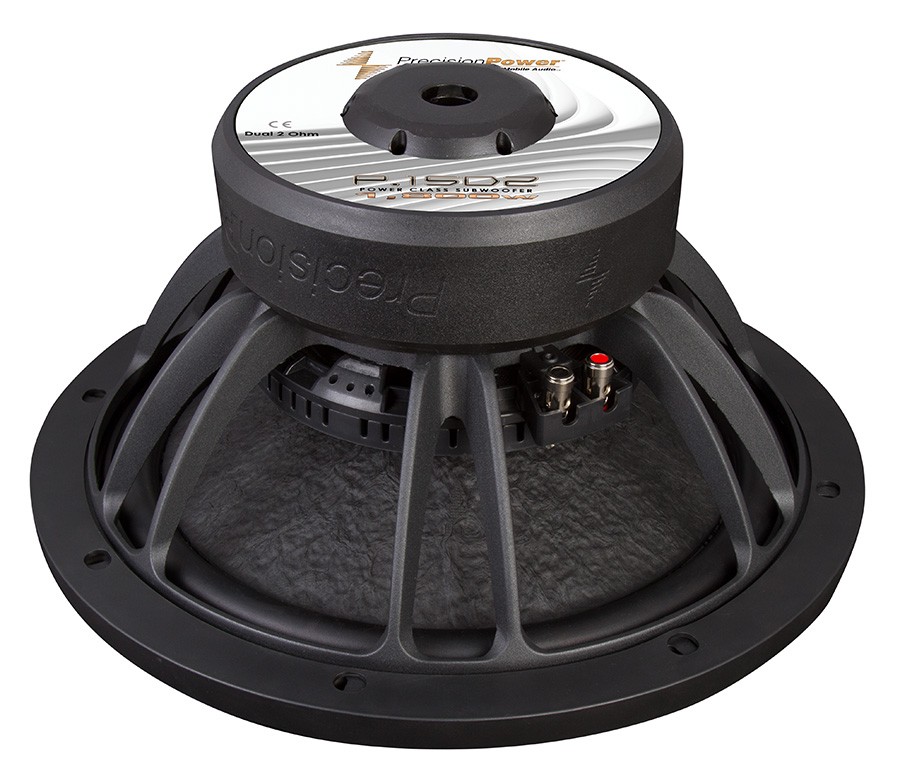

15″ 900w Power Class Dual 2 Ohm Subwoofer

RMS Power (watts) 900
Efficiency (1w/1m dB) 87.30dB
Voice Coil Configuration 2.50" DVC 2Ω
Category:
Product Description

Intriguing from the first look, the new PC subwoofers have even more to tell than what meets the naked eye… The wild looking dustcap is not just four visual pleasure, but also acts as a heatsink to extract heat from the coil gap. It is also embedded into recesses in the cone and stiffens the cone for durability and to eliminate cone flex which cases radiated noise. All in all, this subwoofer is a result of strong engineering and dedication to the competitor in all of us…

  • Composite Blend Fiber/Pulp Cone, Rigid for Extreme Conditions
  • Aluminum Heatsink Center Cap Removes Harmful Heat Build-up
  • Inverted Rubber Surround with Harsh Chemical Protection
  • PVC Rubber Trim Ring and Gasket Seals Potential Air Leaks
  • 2.5” 4-layer Dual Voice Coil Configuration for Any Application
  • 8ga. Compression Terminals Secure Wire Connections
  • Dual Poly-Cotton Suspension Maintains Velocity Control
  • Diecast Aluminum Frame w/ Powder Coat Finish
  • 170oz. Magnet Increases Dynamic Performance
  • Vented T-Yoke Backplate Improves Thermal Venting
  • Complete Recone Kits Available

Specifications

  P.15D2
Fs (hz) 27.00
Qms 6.02
Vas (ft^3) 3.185
Cms (mm/n) 0.098
Mms (g) 354
Rms (kg/s) 9.971
Xmax 15
Xmech 22.5
Dia (in.) 12.6
Sd (in^2) 124.7
Vd (ft^3) 0.064
Qes 0.5
Re (ohms) 3.856
Z (ohms) 4
BL 21.43
Pe (watts) 900
Qts 0.47
No 0.342
1w/1m SPL 87.33
2.8v SPL 90.66
VC DIA (IN) 2.5
VC (Ohms) DVC2
M-vd (ft^3) 0.25
Cut-out 13.75
Depth 7.375
Enclosure Recommendations PC.15
Sm Sealed 1.50
Qtc 0.827
F3 44.15
Med Sealed 2.00
Qtc 0.742
F3 43.15
Lg Sealed 2.50
Qtc 0.692
F3 43.06
Enclosure Recommendations PC.15
Sm Vented 3.50
port (2)4×12
Fb 38.38
F3 31.28
Med Vented 4.00
port (2)4×12
Fb 34.71
F3 29.13
Lg Vented 4.50
port (2)4×12
Fb 32.54
F3 27.52
