SNBX.112

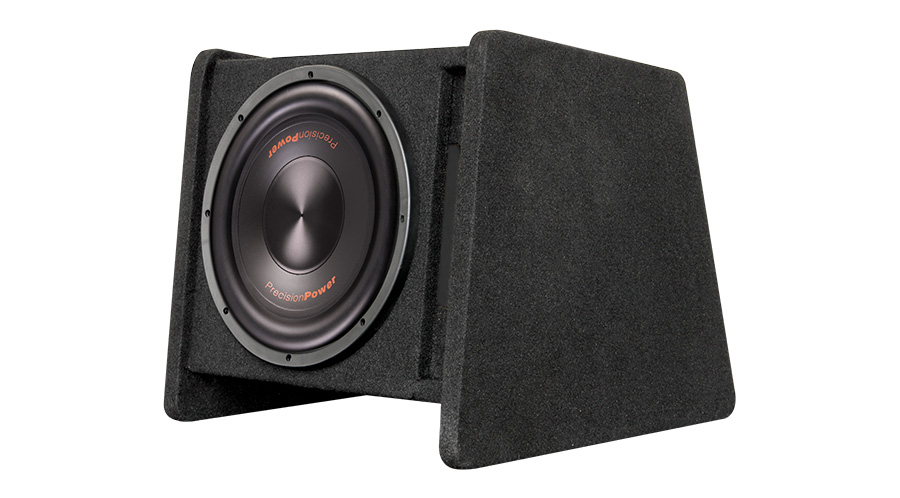

Vented Enclosure w/ 400w Class D Amplifier & Single 12″ Sedona Subwoofer

Category:

Description

Sedona active subwoofer enclosures are an “all-in-one” solution when adding bass to a factory or upgraded audio system. Each Sedona enclosure is manufactured with industrial grade medium density fiberboard (MDF) and wrapped in premium black upholstery. A complimenting class D amplifier is flushed into the back of each enclosure, with variable crossovers and bass boost. Select 12″ enclosures include a horn loaded port for maximum output.

Vented Enclosure & Amplifier Features:

  • Rugged Medium Density Fiberboard Construction
  • Horn Loaded Port for Maximum Output
  • Direct Wire 4ga. Power & Ground Wire Connections
  • Variable 12dB Low Pass Crossover Filter
  • 18dB Bass Boost Increases Low Octave Harmonics
  • 1800 Signal Phase Switch
  • 200mV-6V Low-Level RCA or High-Level Signal Input
  • Direct Short, Thermal, & Overload Circuit Protection
  • Dash Mounted Remote Gain Control Included

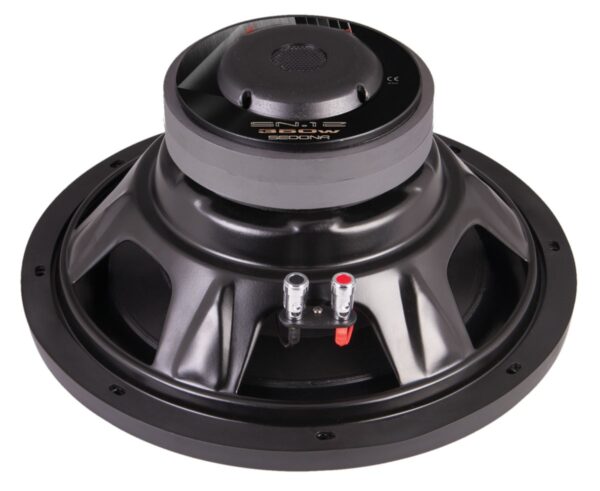

Sedona Subwoofer Features:

  • Injection Molded Polypropylene Cone
  • Overcast Stitched Cones
  • NBR Rubber Surround
  • 2″ SVC 4-Ohm Voice Coil
  • Embossed Dust Cap
  • Frame Voice Coil Venting
  • Vented T-Yoke & Back Plate

Dimensions: 16″H x 18.5″D x 17″L

SNBX.112
