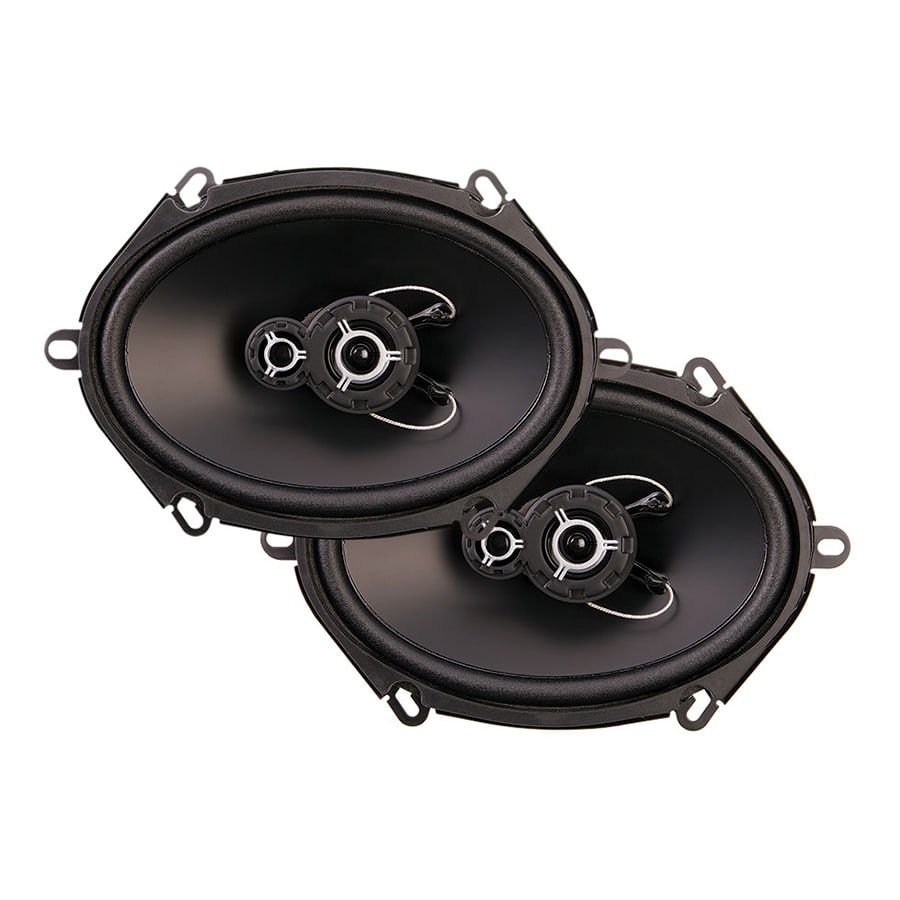

Sedona Series 5” x 7″ 3-way Full Range Speakers
| Size & Configuration | 5″ x 7″ 3-Way |
| RMS / Max Power (Watts) | 120 /350 |
| System Impedance | 4-Ohm |
Improved Efficiency Diaphragm & Magnet Structure Injection Molded Polypropylene Cone
Treated Woven Cloth Surround
1” Voice Coil on Aluminum Former
4-ohm System Impedance
Quick Disconnect Terminals

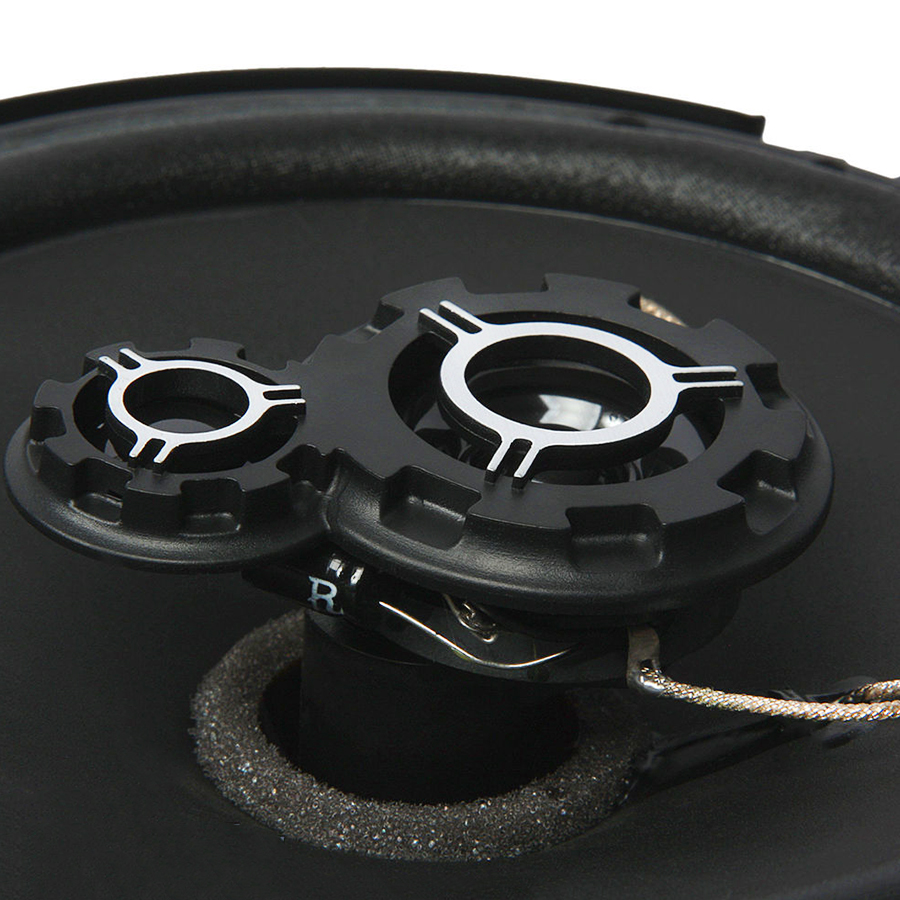

1” Balanced Dome Mylar Tweeter
1/2” Dome Super Tweeter
| Model / Specifications | SD.573 |
|---|---|
| Size & Configuration | 5″ x 7″ 3-Way |
| RMS / Max Power (Watts) | 120 / 350 |
| System Impedance | 4-Ohm |
| Frequency Response | 75-20kHz |
| Efficiency (1w/1m dB) | 89dB |
| Woofer Mounting Depth | 2.625″ |
6.5″ Speakers with Grilles
PowerClass Full – Range Coaxial
| Size & Configuration | 6.5″ 2-way |
| Power Handling | 130w |
| System Impedance | 4-Ohm |
Sedona Series 6.5” 3-way Full Range Speaker
| Size & Configuration | 6.5″ 3-Way |
| RMS / Max Power (Watts) | 100 /300 |
| System Impedance | 4-Ohm |
Sedona Series 4” 2-way Full Range Speakers
| Size & Configuration | 4″ 2-Way |
| RMS / Max Power (Watts) | 100 /20 |
| System Impedance | 4-Ohm |
6.5″ 2-way Sedona Series Component Set
| Size & Configuration | 6.5″ 2-Way |
| RMS / Max Power (Watts) | 120 /350 |
| System Impedance | 4-Ohm |
