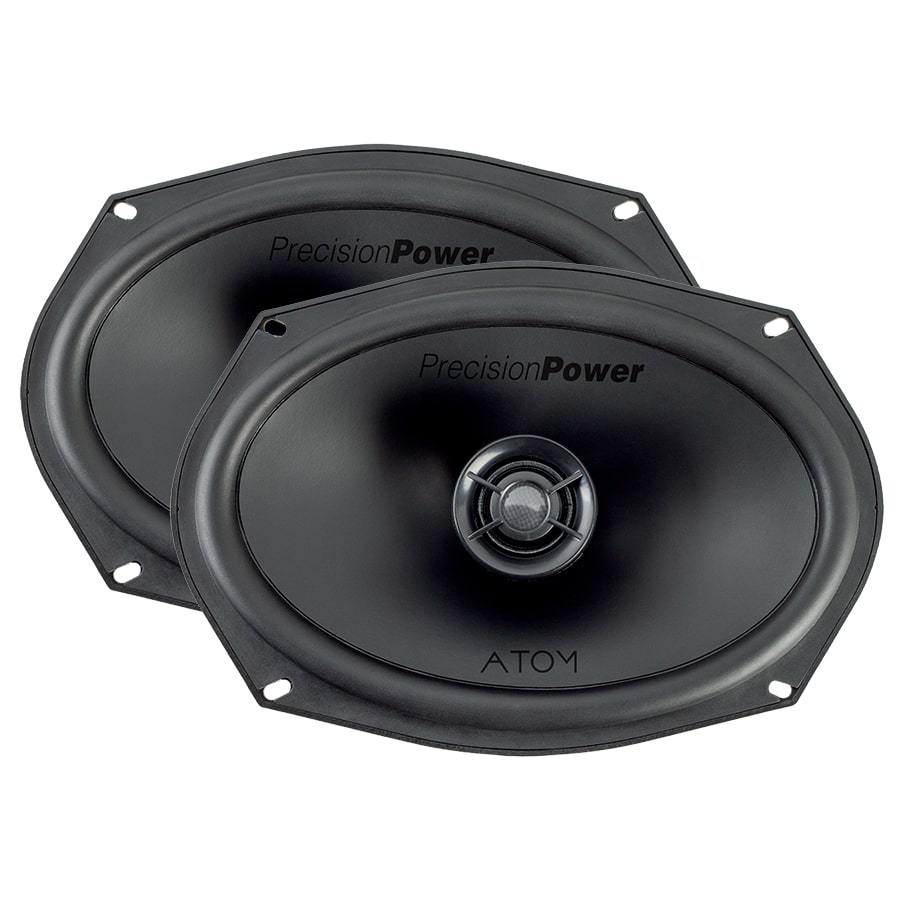

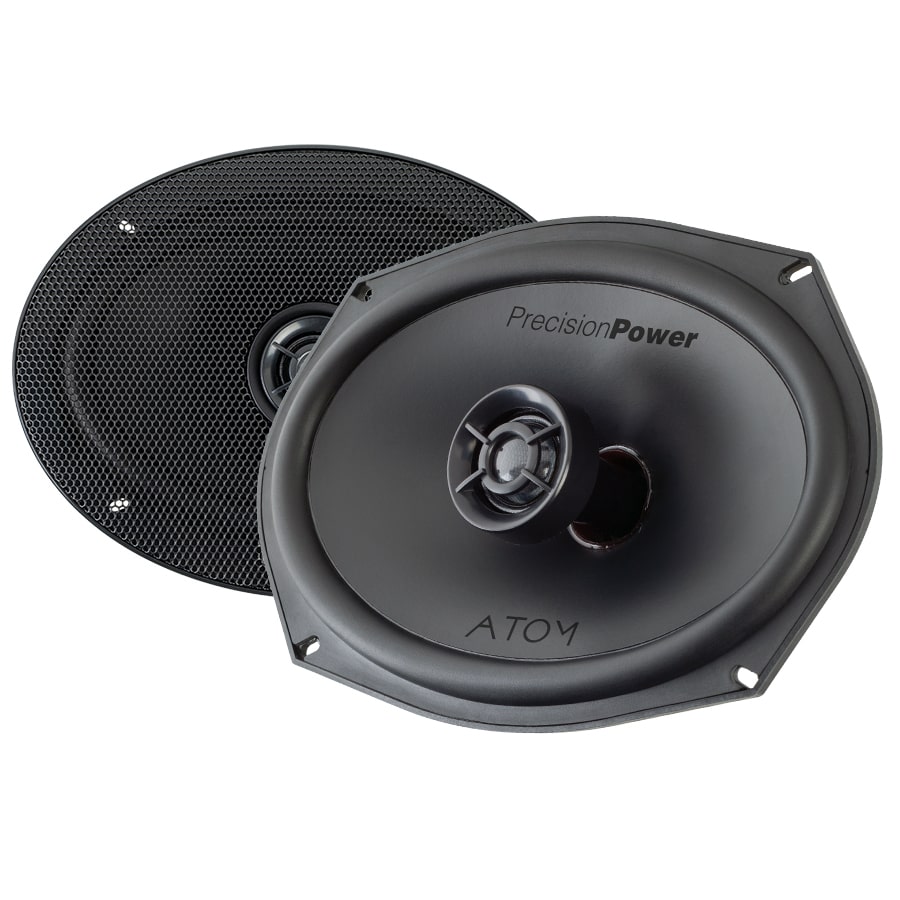

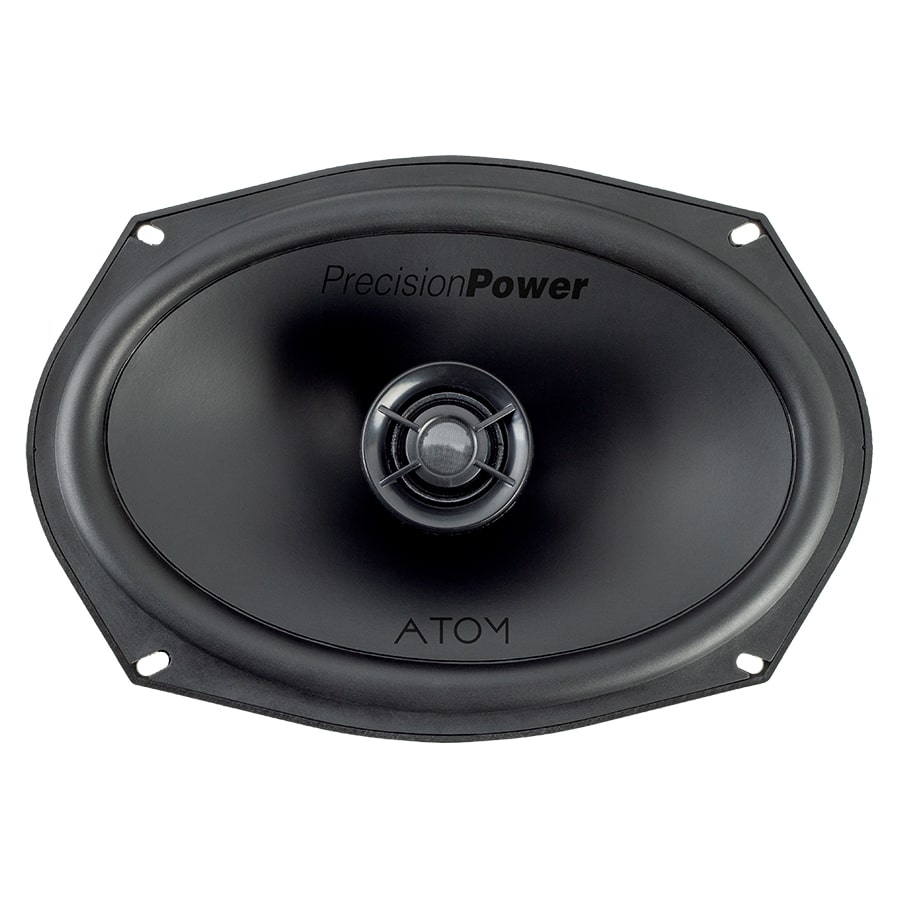

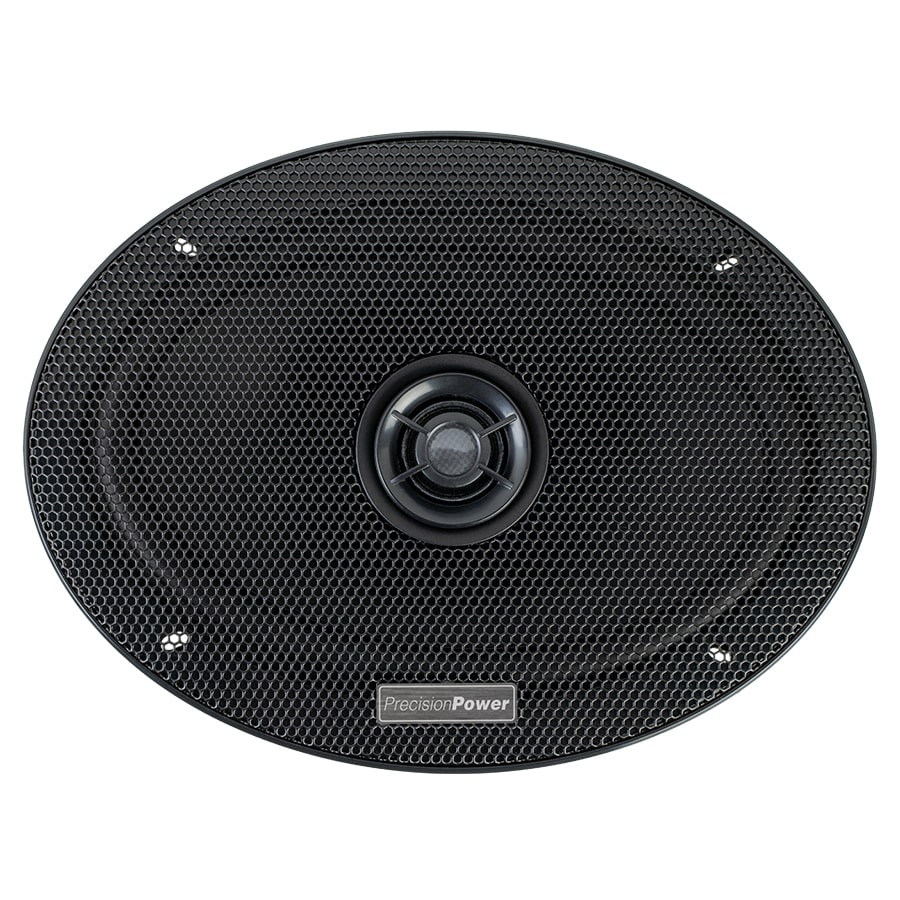

AS.69

ATOM Series Coaxial Speakers

6″x 9” Full Range Speaker – Pair

Size & Configuration 6″ x 9″ 2-Way
RMS / Max Power (Watts) 75/150
System Impedance 4-Ohm

✉️  Sign up, be the first to know when this item is in stock.


Category: Tags: , ,

Description

PA66+GF30 Injection Molded Frame
Polyamide 66 is a semi-crystalline polymer material with good rigidity, hardness, abrasion resistance, and dimensional thermal stability. Also, PA66 has outstanding wear resistance and low frictional properties. It also has perfect temperature, chemical, and impact properties. When 30% glass fiber is added, PA66 demonstrates outstanding mechanical properties, higher strength, rigidity, and dimensional stability. Compared to unreinforced PA66, this glass-filled modification’s properties make this material suitable for use in parts exposed to high static loads over extended periods in extreme temperature conditions.

Polypropylene Coated Pressed Paper Cone
Audiophiles & enthusiasts will agree, pulp paper speaker cones generate the most natural sound. Comparatively, lower-cost polymer-based cones produce a harsher sound quality but have an advantage of higher SPL. ATOM coaxial speakers’ cones combine these two advantages, resulting in hybrid performance characteristics of premium sound & efficiencies.

Tetoron® Fabric Dome Tweeter
The Teteron dome tweeter is a durable polyester & rayon synthetic material formed into its dome shape. Specially contoured to reduce distortion, the Teteron® dome tweeter fits into a custom-designed bezel which amplifies and optimizes the tweeters dispersion patterns. Coupled to a low mass 1” voice coil on a Kapton® former & a built-in 6dB high-pass crossover yield power handling, frequency response & efficiency to blend coherently with the speaker cone body.

1.25” Voice Coil on Kapton® Former
Select Atom coaxial speakers to include a 1.25” 100% Oxygen-Free Copper voice coil for increased power handling. The larger diameter voice coil geometry also helps to maintain the moving diaphragms linearity. All Atom speaker voice coils are wound on Kapton®, a polymer material known for its extensive range of temperature stability and electrical isolation abilities. Additionally, Kapton® has significantly less mass than alternative materials, increasing overall speaker efficiency.

Specifications

Model / Specifications AS.69

Size & Configurations – 6″ x 9″ 2-Way

RMS / Max Power (Watts) – 75/150

Frequency Response – 60Hz-20kHz

Efficiency (1w/1m dB) – 89.9dB

Woofer Mounting Depth – 3.00″ (76mm)
