i640.5

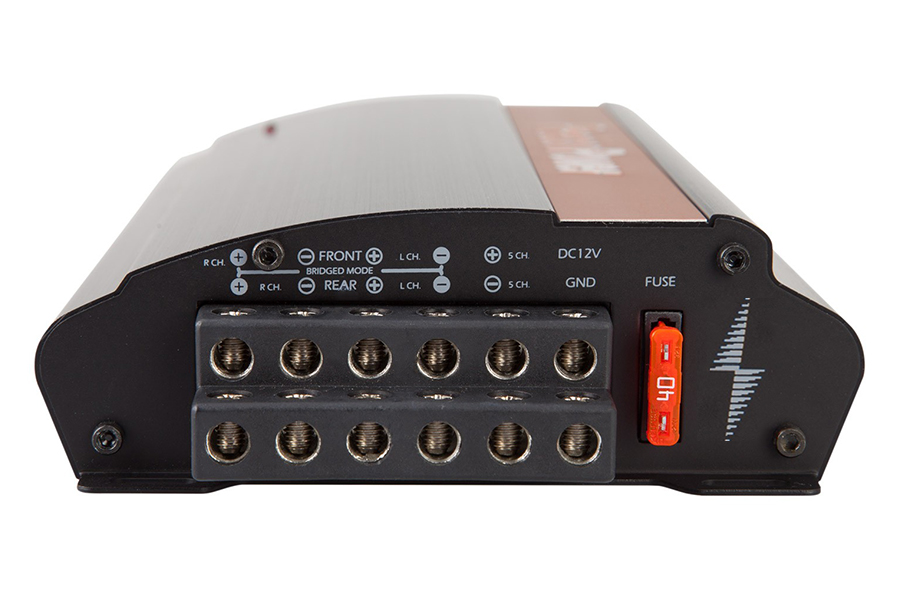

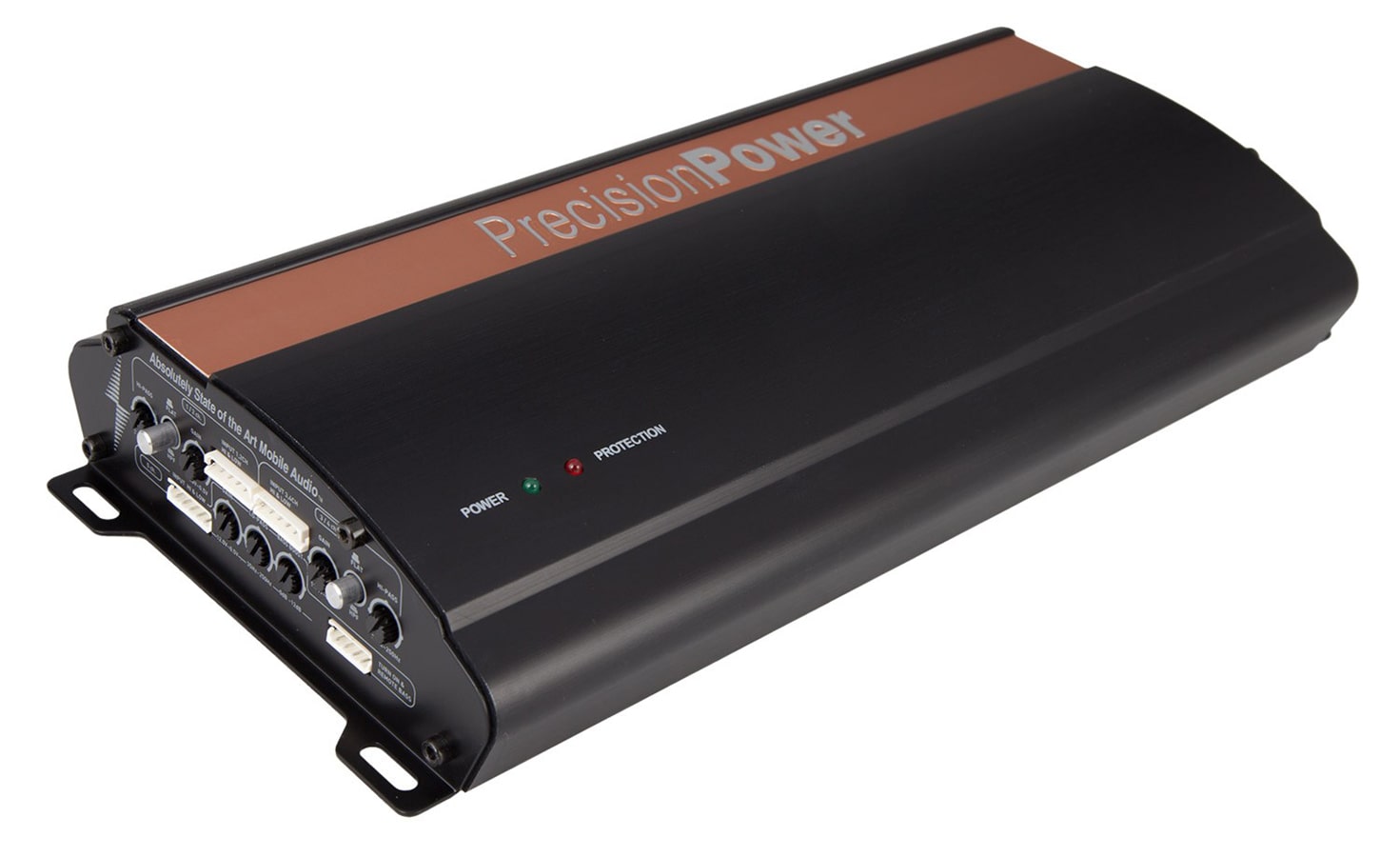

iON Series Class D 5ch. 540w Amplifier

RMS Power 4Ω 60w x 4ch + 200w
RMS Power 2Ω 80w x 4ch + 350w
RMS Power 4Ω Bridged 160w x 2ch + 350w
Category:
Product Description

We’re in a time where small is “in”. Smaller, more economical vehicles are more and more desirable. But that doesn’t mean you have to sacrifice big power for your system. The new iON amplifiers pack huge amounts of power into small chassis thanks to efficient full range Class D topology and SMT technology. Complimented with every possible preamp adjustment, the iON amplifiers leave nothing to be desired…

  • Small Compact 4.75” Wide Chassis
  • MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
  • Military Grade SMT PCB Maintains Dynamic Performance
  • Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
  • 2-ohm Stereo & 4-ohm Bridged Full Range Operation
  • Direct Short, Thermal, & Overload Circuits Protect Ampllifier
  • 200mV-6V High Level or Low Level RCA Input
  • Quick Disconnect RCA/High Level Wire Harness
  • Direct Wire 8ga. Power and Speaker Output Harness

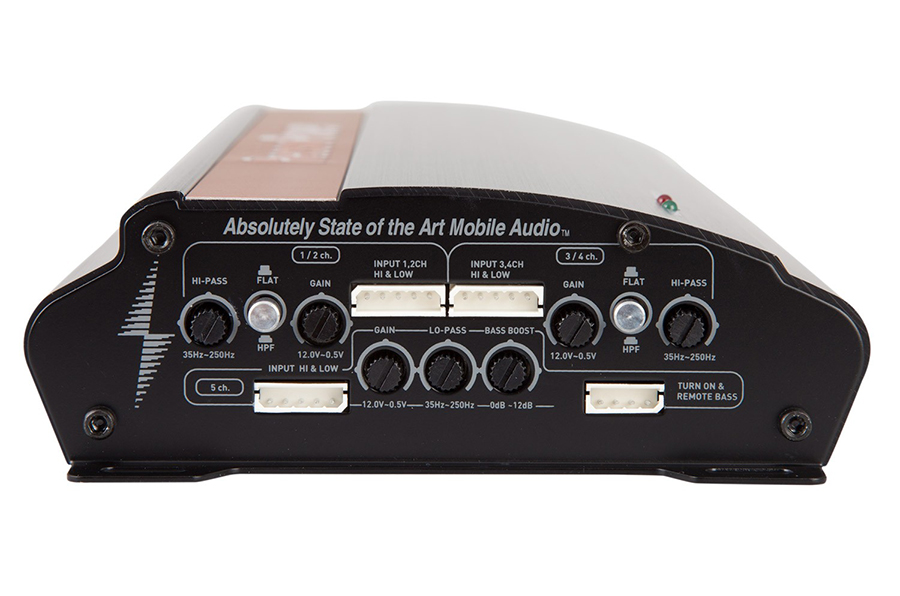

  • Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
  • Dash Mount Gain Control Module Included

Specifications

  i640.5
RMS Power 4Ω 60w x 4ch + 200w
RMS Power 2Ω 80w x 4ch + 350w
RMS Power 4Ω Bridged 160w x 2ch + 350w
Remote Gain Control Included
Dimensions
(4.75"w x 1.5"h)
10.3"
