i520.4

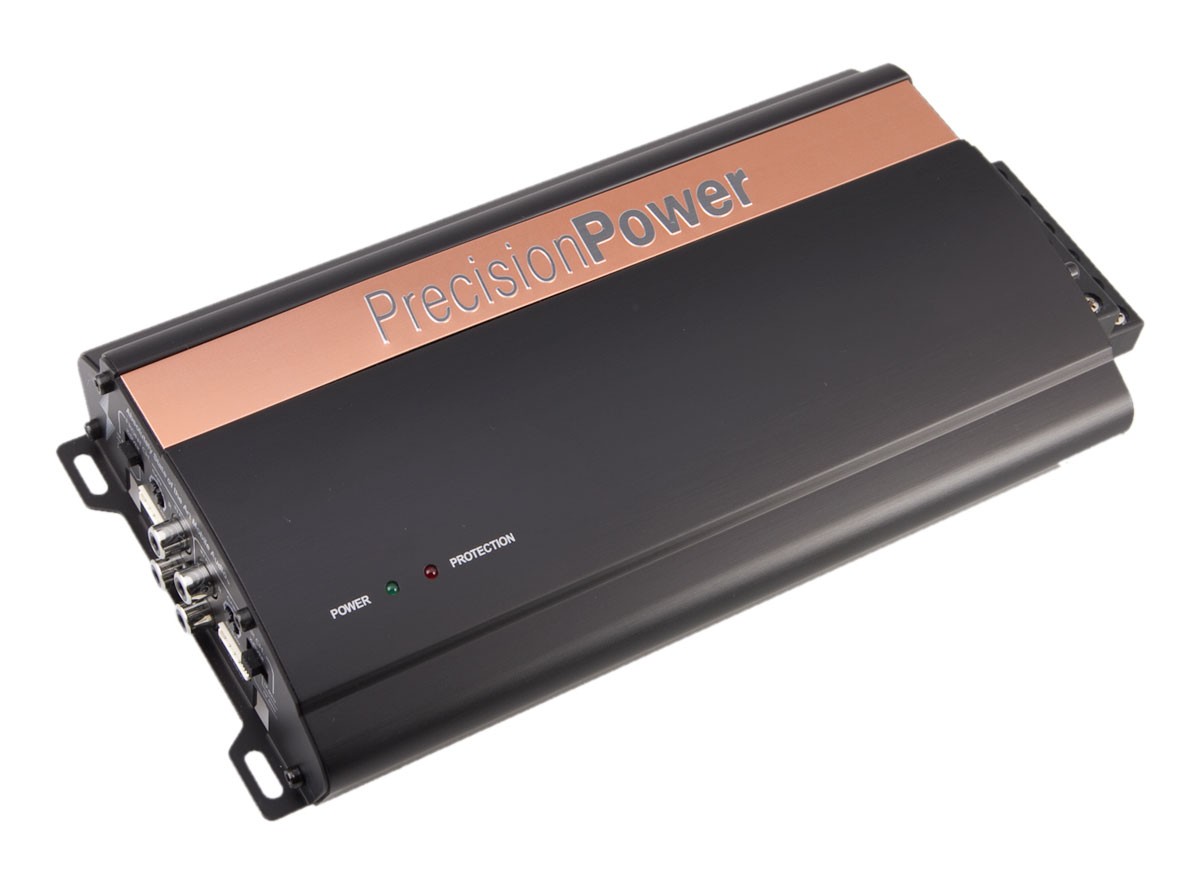

iON Series Class D 4ch. 520w Amplifier

Channels 4
RMS Power 4Ω 100 x 4
RMS Power 2Ω 130 x 4
RMS Power 4Ω Bridged 260 x 2
Category:
Product Description

We’re in a time where small is “in”. Smaller, more economical vehicles are more and more desirable. But that doesn’t mean you have to sacrifice big power for your system. The new iON amplifiers pack huge amounts of power into small chassis thanks to efficient full range Class D topology and SMT technology. Complimented with every possible preamp adjustment, the iON amplifiers leave nothing to be desired…

  • Small Compact 4.75” Wide Chassis
  • MOSFET Power Supply w/ Audiophile Grade IRTM Transistors

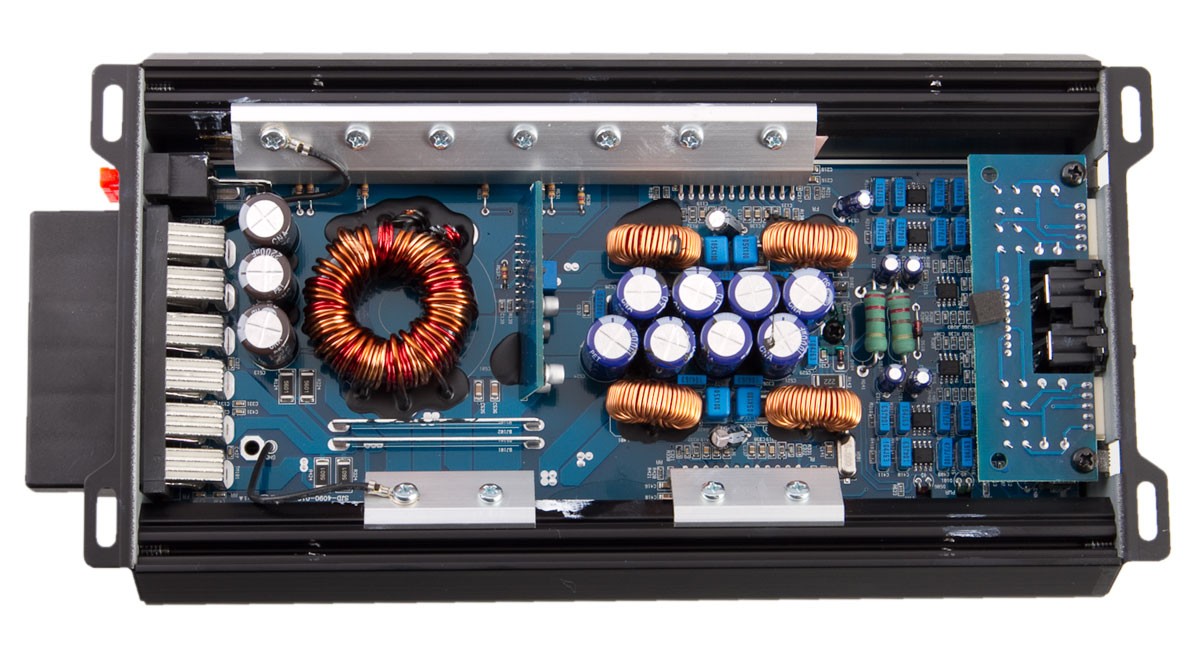

  • Military Grade SMT PCB Maintains Dynamic Performance
  • Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
  • 2-ohm Stereo & 4-ohm Bridged Full Range Operation
  • Direct Short, Thermal, & Overload Circuits Protect Ampllifier
  • 200mV-6V High Level or Low Level RCA Input
  • Quick Disconnect RCA/High Level Wire Harness
  • Direct Wire 8ga. Power and Speaker Output Harness
  • Variable 12dB High Pass, Low Pass, & Subsonic Crossovers

Specifications

iON i520.4
Channels 4
RMS Power 4Ω 100 x 4
RMS Power 2Ω 130 x 4
RMS Power 4Ω Bridged 260 x 2
Dimensions: (5.375"w x 1.875"h) 9.25"
