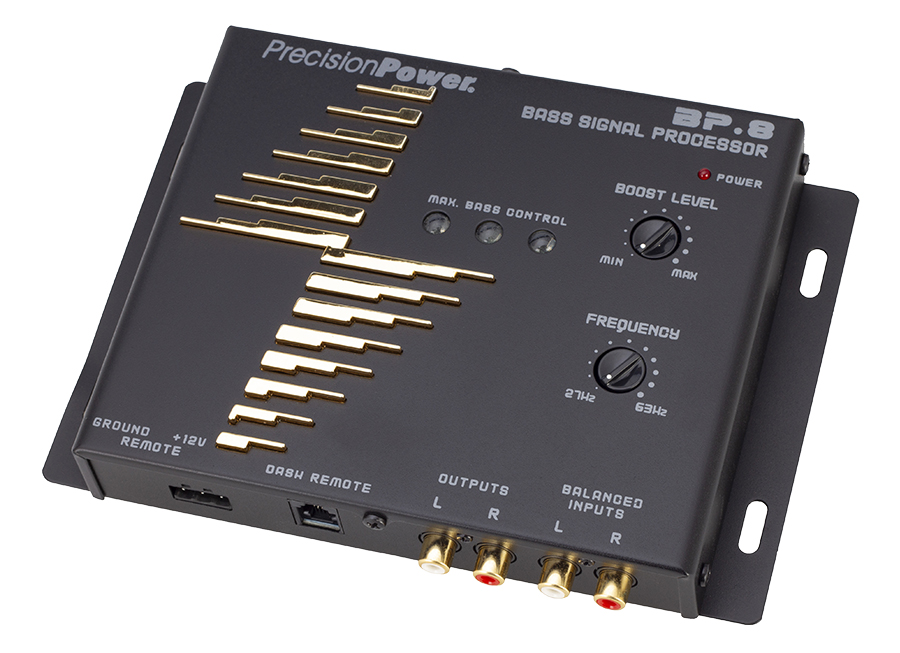

BP.8

Bass Before Amp Restoration Processor/Maximizer

  • Increases Bass Response from your System
  • 2-channel Preamp Inputs and Outputs
  • Wired Remote Bass Level Controller
  • Frequency response: 10Hz to 100KHz
Product Description

They say music soothes the soul, but poor control on your system can kill the harmonics of a beautiful song or road-trip. If you want to extend great-sounding music from your source to your amps, then get yourself a Precision Power Digital Bass Reconstruction Processor.

The BX digitally maximizes the ultra-low bass on all types of recorded material. The processor detects bass harmonics, then digitally recreates the original essentials for the incredible punch and impact of live music. Basically, you get more bass!



Features

SWEEP selects the frequency boosted by the equalizer. This is the “center frequency”, which can be as low as 27Hz, or as high as 63Hz. Choosing this frequency depends on your taste in music.

WIDTH increases or decreases the bandwidth range, or “Q,” boosting frequencies near the “center frequency.” Narrow Q focuses on harmonics immediately surrounding the center frequency. Wide Q unlocks harmonics all around the center frequency.

OUTPUT VOLTAGE is the amount of boost level. Your instincts might be to choose 10V because why not, but hold on a second… more isn’t necessarily better. In this case, more can be dangerous, potentially damaging your subwoofers.

MAX BASS INDICATOR lights above the equalizer controls are a visual representation of the boost level. Bright, continuous illumination indicates maximum bass enhancement levels have been reached. Remember, more isn’t necessarily better…

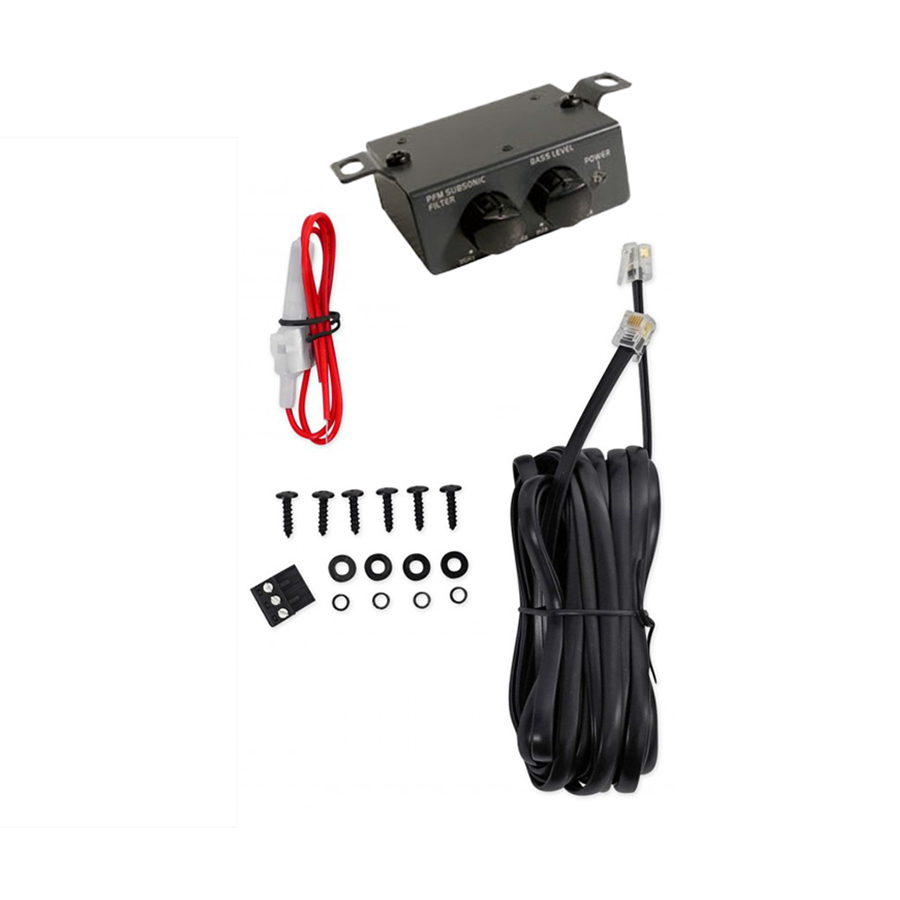

DASH MOUNT CONTROL included with this amplifier can be mounted anywhere in the vehicle, but near the driver seat is recommended. The output level of the Bass Equalizer can be controlled, as well as the amplifiers gain level.

Specifications

Bass Expander Signal Processor with Parametric EQ

Variable 27-63Hz Bass EQ
Variable Boost Q
Boost Voltage Limitation Control
Selectable 35,50,80Hz Subsonic Filter
10V Max Line Driver
Balanced Signal Inputs, Up To 15 Volts
Selectable Signal Grounding Mode
Selectable Ground Isolation
Dash Mount Remote Gain Control
THD: .003%
S/N Ratio: 130dB

Support

Owners Manual [.PDF]
