Absolutely State of the Art Mobile Audio

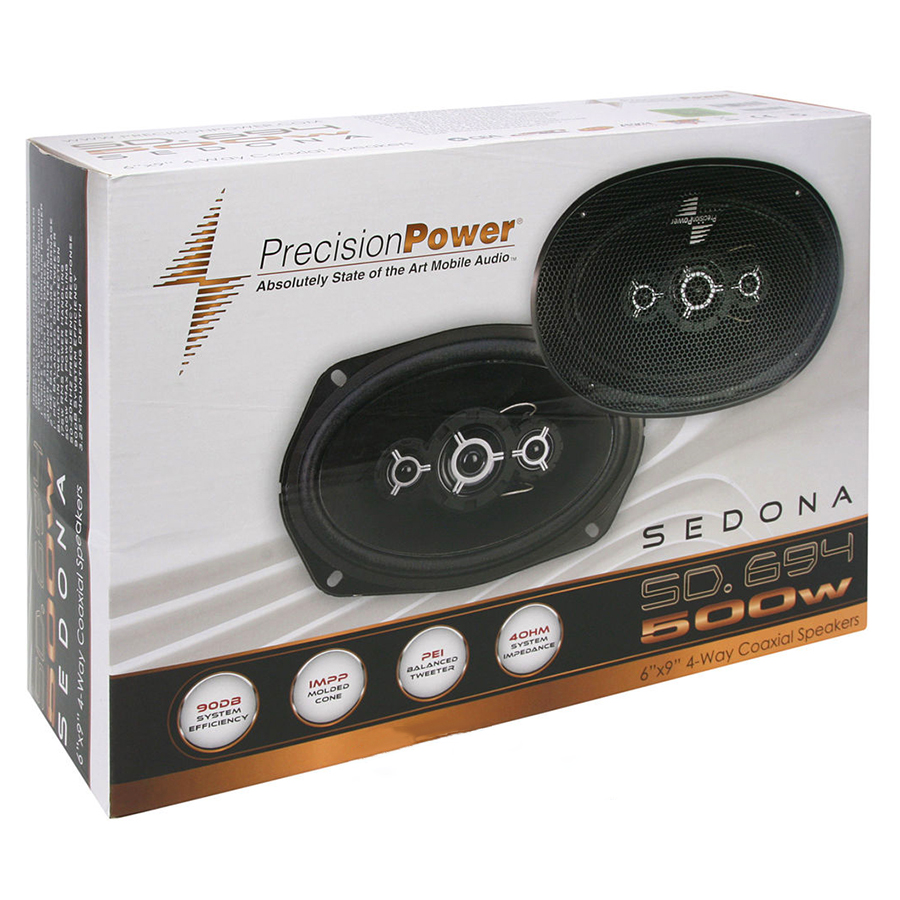

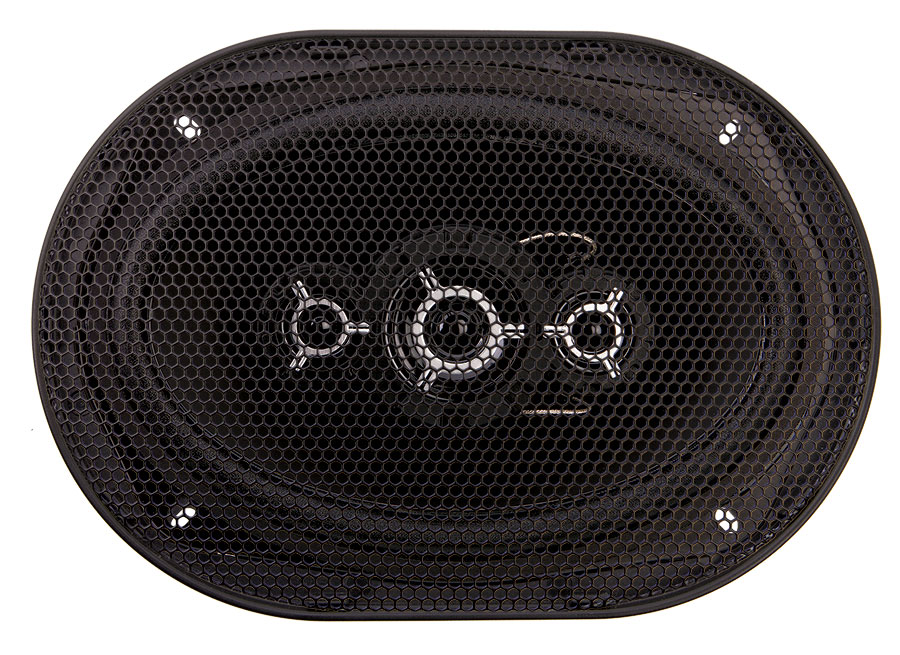

Sedona Series 6” x 9” 4-way Full Range Speaker
| Size & Configuration | 6” x 9″ 4-Way |
| RMS / Max Power (Watts) | 170 / 500 |
| System Impedance | 4-Ohm |

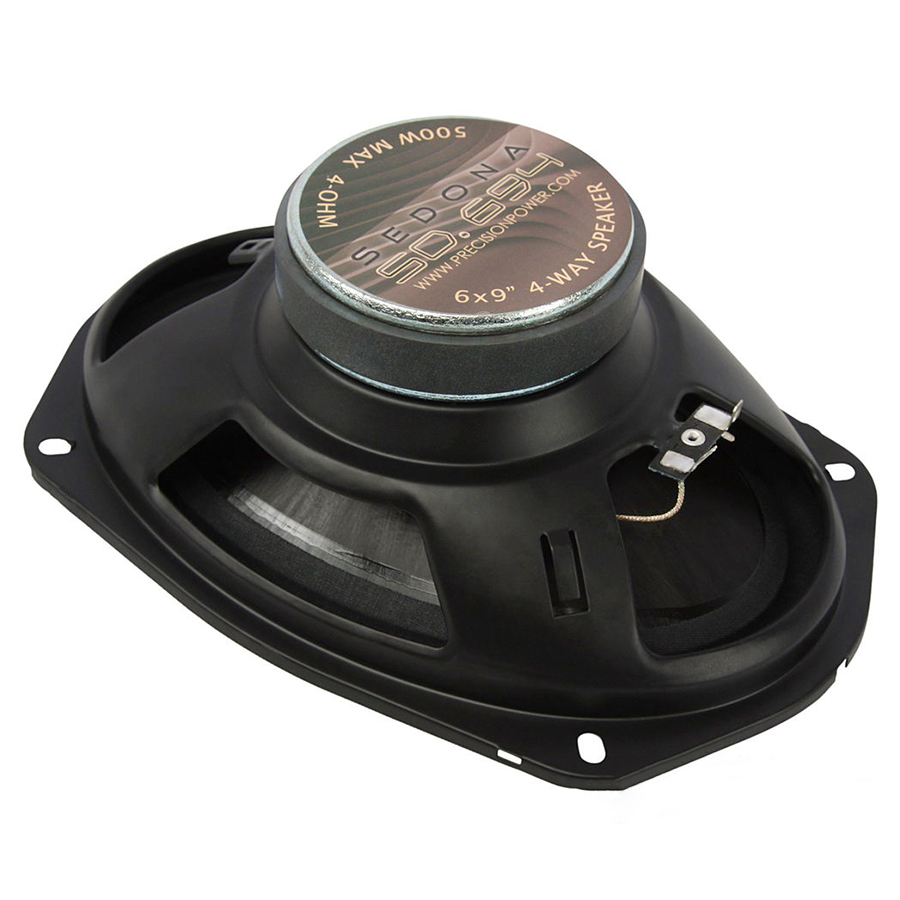

Improved Efficiency Diaphragm & Magnet Structure Injection Molded Polypropylene Cone
Treated Woven Cloth Surround
1” Voice Coil on Aluminum Former
4-ohm System Impedance
Quick Disconnect Terminals

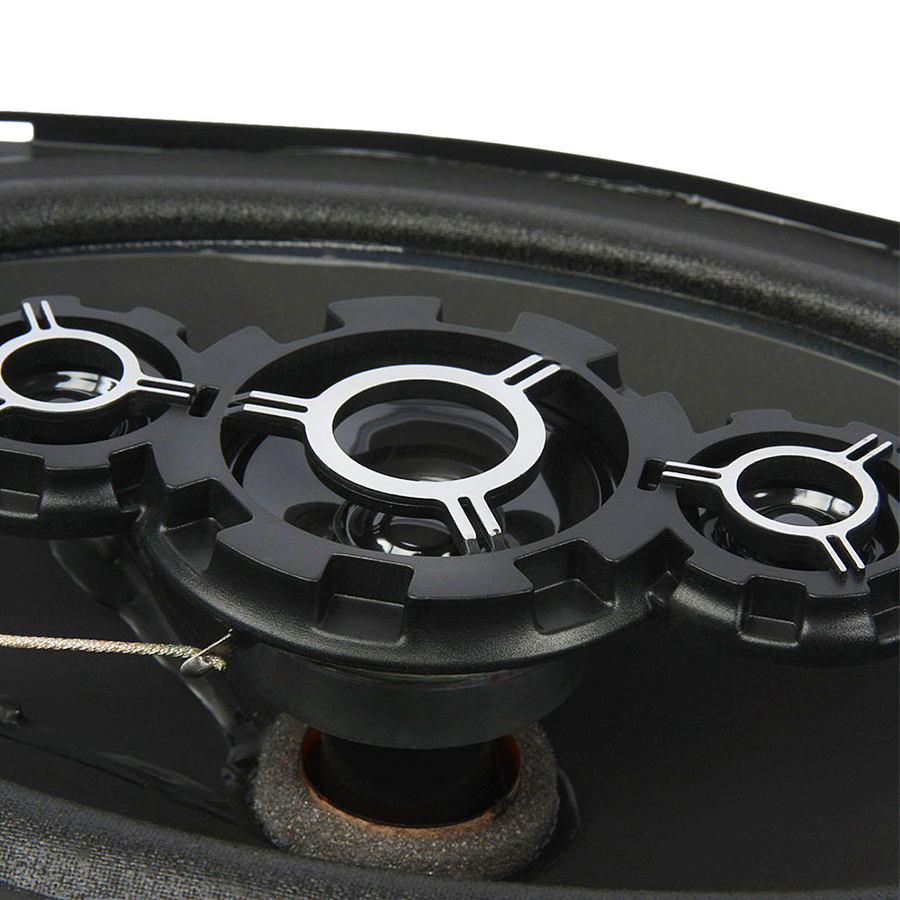

2” Balanced Dome Mylar Midrange
1” Balanced Dome Mylar Tweeter
1/2” Dome Super Tweeter
| Model / Specifications | SD.694 |
|---|---|
| Size & Configuration | 6″ x 9″ 4-Way |
| RMS / Max Power (Watts) | 170 / 500 |
| System Impedance | 4-Ohm |
| Frequency Response | 50-20kHz |
| Efficiency (1w/1m dB) | 90dB |
| Woofer Mounting Depth | 4.25″ |
